Step 05: Shape Inking open online photoshop
Back to homepage

We can now begin to create a nice, black outline version of our picture. We will work first on the long, unbroken lines in the image. We could simply draw our face freehand (and we will do some of this in the next step), but ToolPic has a built-in system that will create smooth, perfect lines for us. This is accomplished using Shape Inking. Shape inking can seem pretty intimidating at first. It can seem like a horrible, technical, time-consuming, and complicated process. But, once you get a good sense of how to use the Pen tool, it really is easy to work with, comes in handy, and the lines it makes are pretty much flawless.

Before we get started, let's make sure we have the correct layer selected.

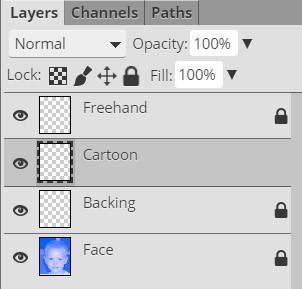

  1. Open your Face04 file in ToolPic
  2. Make sure the Freehand, Backing, and Face layers are all locked...

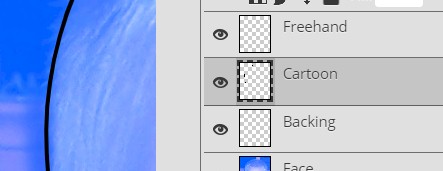

  3. Make sure the Cartoon layer is selected (it should be highlighted in gray like in the image above)

DRAW ONLY ON THE CARTOON LAYER - THIS IS VERY IMPORTANT!

If your Face layer is unlocked and you draw your cartoon lines on it then the lines you draw will merge with the blue image and will be impossible to separate,

AND YOU WILL HAVE TO START OVER.

When working with ToolPic, be sure that all changes you make are being placed on the correct layer. By keeping our cartoon and Best free photo editor online layers separate we can turn the visibility of our photo on and off as needed to see our progress and compare the cartoon we are making with our original image.


The two tools we'll be using are the Pen tool (located just under the Type tool) and the Direct Select tool (just under the Pen tool). We'll be using the Pen tool to draw points and the Direct Select tool to modify them. Before we get started, I should mention that there are actually several different ways to create nice, smooth lines using ToolPic. We will cover just one, but this method will be useful in a large variety of situations you may encounter in the future.

When we create Shapes, we are drawing adjustable lines with points on them, which ToolPic calls knots, that can be moved around and used to adjust the shapes until we have them exactly where we want them. Think of it as using a string to create a shape on the floor, then moving the string around any way we want to create any shape we want. Once we have the string in a position we like, we attach it to our surface.

Let's begin creating the outline of your face.

  1. Select the Pen tool...
  2. Go up to the Pen Tool options bar, and look at the left side where you see this...

We need to make sure the correct tools are activated or the changes we will be making to our graphic in the following steps will not work

  1. We want to make a shape, so make sure the Pick tool mode selector is set to Shape (notice the word Shape in the above image - you want your screen to have the exact same selection)

THIS IS VERY IMPORTANT - IF YOU DO NOT SELECT SHAPE ALL KINDS OF STRANGE THINGS WILL HAPPEN, SO FOLLOW THESE DIRECTIONS CAREFULLY!

The Fill color is currently set to red, but we actually don't want a Fill color at all. If a Fill color is defined, Potopea will try to make our outline into a complete shape. We just want an outline, so let's set the Fill color to nothing.

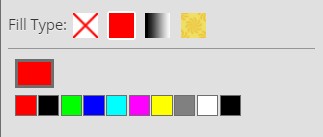

  1. Click the Fill color box...

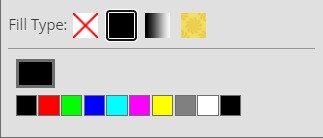

    This will open the Fill color pop-up window...
  2. Click the white box with red X...

    This will turn off the fill color
  3. Press the Esc key to remove the Fill color pop-up window

Now let's set the Stroke color to black.

  1. Click the Stroke color box...

    This will open the Stroke color pop-up window...
  2. Click the black color box...

    This will expand the color selector...

    and select black as the Stroke color
  3. Press the Esc key to remove the Stroke color pop-up window

The last thing we need to do is set the width of the line. This will depend on the size of the image each of us is working with, so I can't give you an exact amount. Not having an exact number is not a problem though as ToolPic allows us to adjust the size of our line after we draw it to whatever size works best.

For my image, I'm going to set my Stroke width to 4.0. The following directions cover how to set the Stroke width to 4.0, and after we draw the line we will discuss how to adjust it to fit your image.

  1. Double-click the Stroke Width box to select the value in it...

Let's all set the size to 4, and we can adjust the value later.

  1. Type 4...
  2. Press Enter

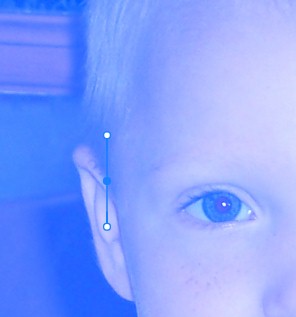

Let's start creating our first shape just above your ear. When using the Pen tool, clicking the left mouse button places an knot. If you drag the mouse a little bit while holding the mouse button down, you can create adjustment handles. If you don't add adjustment handles, the shape will just be a straight line to the next point you make and the curves it makes will be crappy. So the starting direction line is how you get ToolPic to make nice, pretty curves. Take a look at the image below...

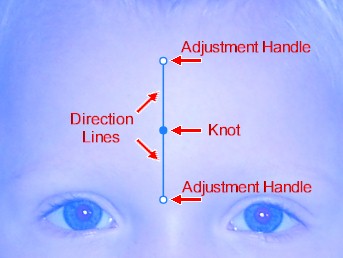

The blue circle is the knot that I dropped, the lines are the direction lines (when you drag the mouse, the direction lines are drawn an equal distance on each side of the knot), and the white dots are the adjustment handles. Remember that if you put a knot in the wrong place, you can hit the Delete key to get rid of it.

  1. If you skipped the section above, go back and READ IT as it contains important information you need to know about the Pen tool
  2. Make sure once again that you are on the correct layer - your Cartoon layer should currently be highlighted in blue and the other two layers should be locked
  3. Left click just above your ear and while holding down the mouse button drag it up a little bit in the direction you want the shape to go (this will get the direction line to display) then release the mouse button - you should now have something similar to the image below...

    If you just clicked and didn't drag, just delete that point and do it correctly - if you don't get the direction line it will be difficult to create nice, smooth lines

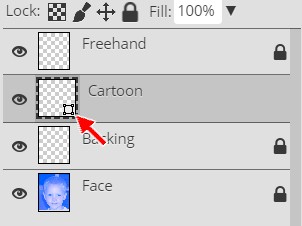

Let's take a quick look at what is going on with our Layers panel. You may notice that a small box has appeared on your Cartoon layer's thumbnail...

That little box indicates that the layer contains a vector element. When painting with the Brush tool, we are creating a raster image, but when using the Shape tool (or the Path tool, which is the other Pen tool option) we are actually creating a vector element that can rearranged and resized with no distortion. While our shapes will start as vector elements, we will quickly and easily convert them raster layers later on.

Make sure one more time that your Cartoon layer is currently selected and that three layers are locked. If the Cartoon layer is not the active layer, delete your knot by pressing the Delete key and then click the Cartoon layer to make it the active layer (it should be highlighted in gray).

  1. Move about half way up the side of your face and click again then drag the mouse around until the line between the two points you created matches the curve of your face - note that at this point you can move the mouse up and down or left and right to get the line that ToolPic inserted between the two points to curve how you like it

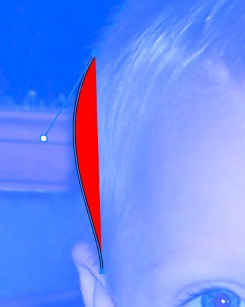

If you do not have a line but instead have a strange shape that is filled in with color...

Then congratulations, you did it WRONG!

This is happening because you did not read and follow directions 7-9 above.
To fix this problem, simply do what it says in directions 7-9 now.

Be sure you are actually reading and following the directions.

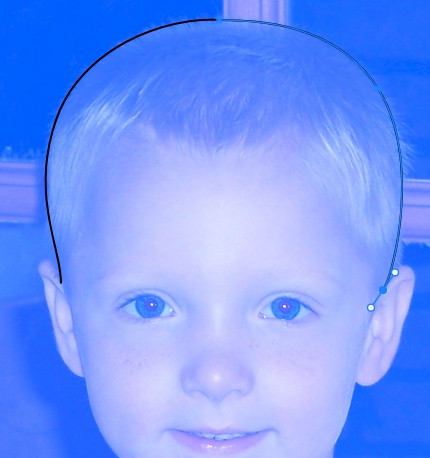

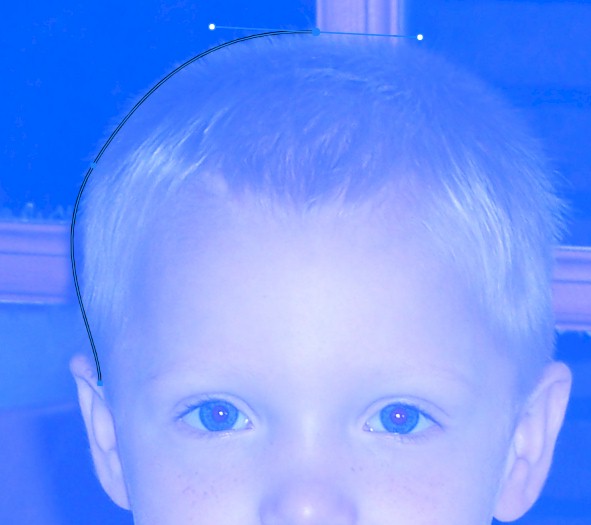

  1. Click at the top of your head and drag the mouse around until you have a nice curve...

    Don't worry too much at this point if your knots are not in the exact correct spot or if your shape curves exactly match the curve of your head - we will cover how to adjust the knots and curves in just a minute

When working with shapes, we want to keep the lines simple and not too complicated. In the graphic above you can see that I am only using 3 points to create the curve and that I am only doing half of the top of his head. I could certainly do more of the head at once, but by using short, easy to work with lines I can make sure that I make an accurate outline.

  A WORD OF WARNING AT THIS POINT:
Do not drop too many knots!
If you have too many knots your line will actually look more jagged than if you use few knots and let ToolPic add in a nice curved line.

If your knots look like this...

then your line will look like this...

Notice that the above line is not smooth at all, especially when compared to the one below...

which was created using only 3 knots. Make sure your lines are smooth!

If you go crazy placing knots don't worry, you can always select them and delete them later.

The Pen Tool is a difficult concept for some users to master, so don't worry too much if you have a hard time getting it to work correctly. Keep practicing and it will work. Using a Shape means you will have very clean, very neat lines.

  If you would like some practice working with the Pen tool, there are several awesome gaming website that allows you work with it.
Two of the best are:
The Bzier Game - play with shapes and improve your line building
Adobe's Pen Tool Game - practice all aspects of using the Pen tool and rack up as many points as you can

Ok, back to work. Now that we have some knots in place, let's take a moment to look at how we can move existing knots and adjust the shape lines between them.

  1. Click the Direct Select Tool (this tool allows us to adjust the points we placed with our Pen Tool)...

    If you don't see the Direct Select Tool it is because the Path Select Tool is currently selected - right-click the Path Select Tool and in the menu that pops up...

    Select the Direct Select Tool
  2. Press and hold the Alt key then roll the mouse wheel up to zoom in so you can see the entire shape and some of the area around it (basically what you see in direction 20 above) - keep in mind that you will want to see at least some of the surrounding area as this will help you when setting up your lines and curves
  3. Click to select any of the three points that need to be adjusted (when attempting to select a point, ToolPic will put a white circle around it when you point at it...

    to let you know that if you click at that point you will select it)
  4. Once you select a knot, you will able to select and adjust the lines coming off of it by using the adjustment handles...

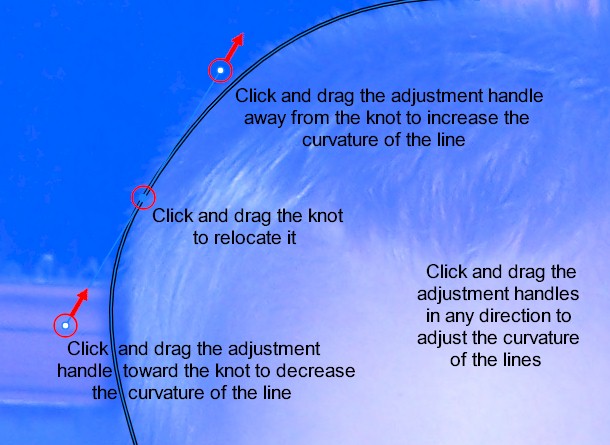

  5. Take some time now to adjust the knots and experiment with both the ingoing and outgoing curve vectors (those lines coming off the knot in each direction with adjustment handles at the end of tem) - this method of curves is very flexible, so take your time and make sure your curve is perfect
  6. Adjust your knots and lines so that the curve matches the curve of your head

The last thing we need to do before we convert our shape into an actual line is to make sure that it is the proper width for our image.

  1. Take a look at the image in direction 24 above and note how wide my line is compared to my head - this is about the width of the line you want
  2. Click back on the Pen tool and use the Stroke width box to adjust the size of your line so that is approximately the same size in your image as it is in mine

A quick word of warning here. You don't want the width of your line to be too wide (it will be difficult to create the more detailed areas of your image) or too thin (it will be difficult to fill the parts of your head with color).

Once you have a stroke you are happy with, let's convert it to an ordinary line. To do this, we need to simply convert the layer that the shape is on into a raster layer. Remember how I mentioned that drawing with the Brush tool creates raster images while drawing with the Pen tool creates vector images. Luckily for us, ToolPic has a quick and easy way to convert vector layers to raster layers: the Rasterize tool.

  1. On the Layers panel, right click the Cartoon layer to open the Layers panel pop-out menu..

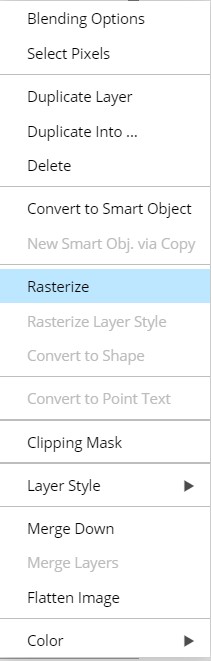

  2. Click Rasterize (highlighted above)

Notice that your the thumbnail for the Cartoon layer no longer has the small box icon that indicates the presence of a vector element and that your line is now a solid line without the path overlay...

At this point, we can no longer adjust our line using the adjustment handles, so I hope everything is where you want it (note that you could always press Ctrl+Z at this point to undo the Rasterize function and continue making adjustments to the line if you really need to).

You should now have something like this...

We are now ready to create a shape line around the rest of your head.

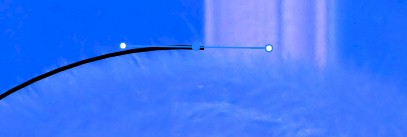

  1. Start where your last shape line ended and click and drag to the right to drop a knot (don't worry if the two ends of the shapes do not line up exactly, we will worry about that later)...

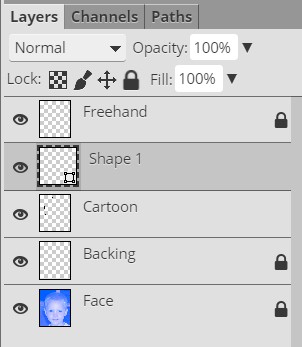

You may notice at this point that something odd is going on with your Layers panel...

The Shape 1 layer was created by ToolPic to hold the new shape you created in the above direction. Don't worry, this is not a problem, and is actually helpful for what we are doing as it will allow us to work with several more features of ToolPic.

  1. Create a shape that goes from the top of your head to the other side of your head, so that you have something similar to the image below...
  2. To convert our shape to a regular line (and get rid of the new layer that ToolPic created) right-click on the Shape 1 layer to open the Layers panel pop-out menu and click Merge Down...

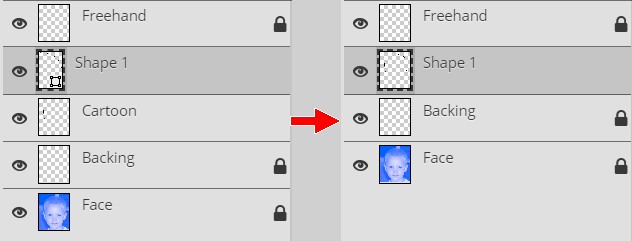

    Notice that where we once had 5 layers we now have 4...

You may notice something a little odd about your layers at this point. What happened to the Cartoon layer? The answer is simple: when you use Merge Down to combine two layers in ToolPic, the newly created layer will be named whatever the top layer was originally named, which in our case was the Shape 1 layer. It may seem like this is a big deal, but it is not. We will continue to create the shapes we need and merge our layers together, and when our entire head is outlined we will simply rename the layer back to Cartoon.

  1. Create shape lines around the remainder of the outline of your head...

    Remember to ink it a piece at a time (perhaps do one cheek, then your chin, then the other cheek, then one ear, then the other ear) and then use Merge Down to merge the as we did before

Keep in mind that while the Pen tool is good for the long, important lines, it should not be used for every line in the picture! It could be, but if your pictures have many small lines like this one, you would simply be driven insane. These small lines don't need the detail of the longer ones, so you would be better off drawing them freehand with the mouse (which we will do in the next step)

  1. Continue using the Pen tool to create the remaining long lines of your face - you want to do the following parts:

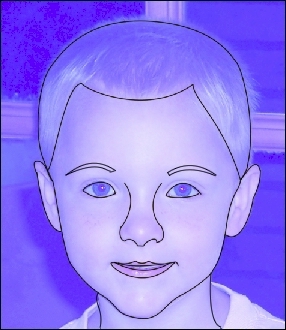

When you finish the above step, you will have something like this...


Ain't he handsome?

Keep something very important in mind at this point - your cartoon needs to extend to the bottom of the image. This will be very important to us when we create our Backing layer in Step 08...


We need to be able to select all of the pinkish area at once

Notice that in the picture I'm using for this Picture editing help that the lines of the neck go all the way to the bottom of the image so that the entire head is one contained unit. This will allow me to quickly and easily select everything around my head with one click so that we are only left with our cartoon head. If you have long hair that extends out the bottom of the photo you can ink that, if not you will have to ink and add color to your clothes. Take a look at the two outlines below...

In the left image, her hair was long enough that it extended out the bottom of the image and thus no additional work on her clothes needed to be done. In the right image however, she had to add shapes to her jacket and blouse so that the cartoon extended all the way to the bottom of the image. It does not matter at this point how you accomplish this, just make sure that your shapes extend all the way to the bottom of the picture.

  1. Rename the layer containing your lines to Cartoon

At this point our cartoon is not perfect - we are missing some important parts around the eyes and ears, but these are short lines that we can quickly add in using the Brush tool and simply freehand ink them in the next step.

  1. Click File then click Save as PSD
  2. Name the file Face05 (Face because it is the face file, and 05 because this is Step 05)
